Pump displacement.
- 150g per downward stroke.
Typical throughput.
- 1.5–2.0 kg/min (10–13 strokes/min).
3 kg fill time.
- ~1.5–2.0 min.
Construction.
- Heavy-duty mild steel, corrosion-resistant components.
Mounting
- Portable base, optional fixed installation.
Safety
- Non-return valves, mechanical stops.

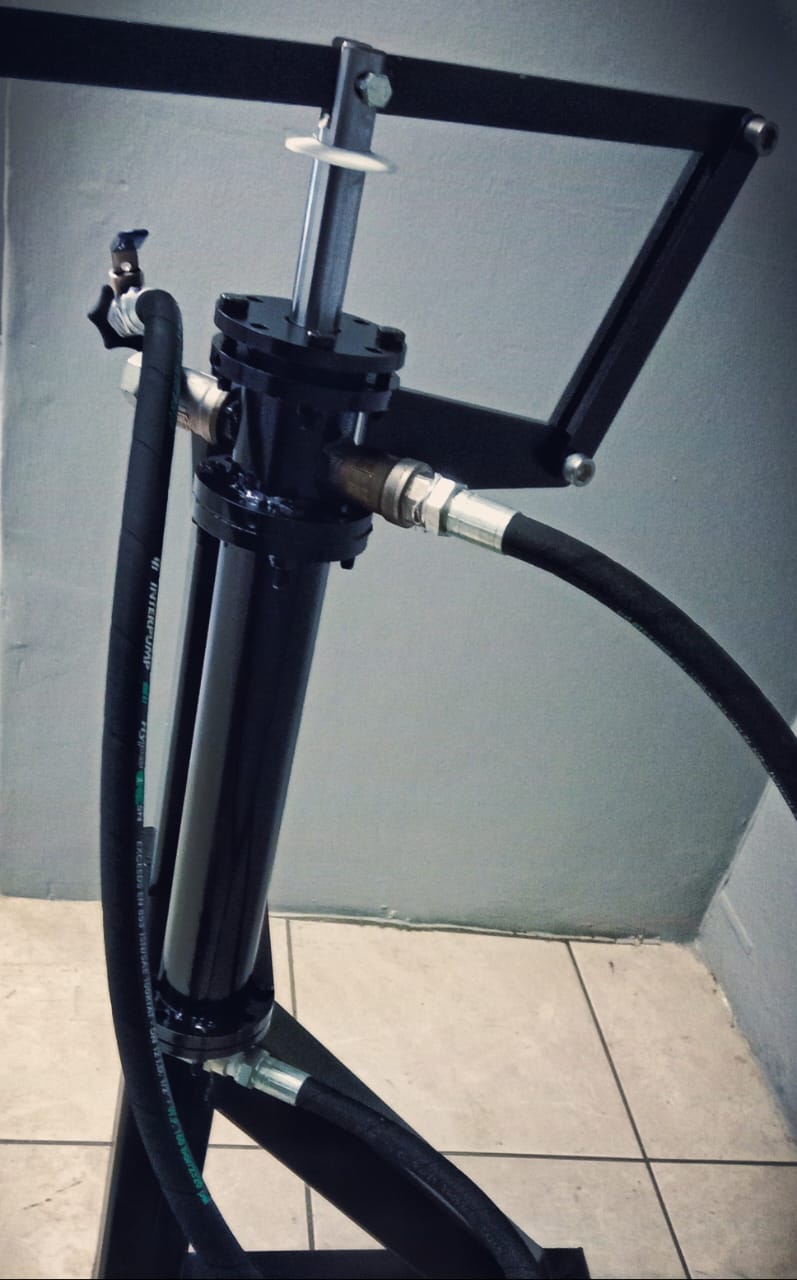

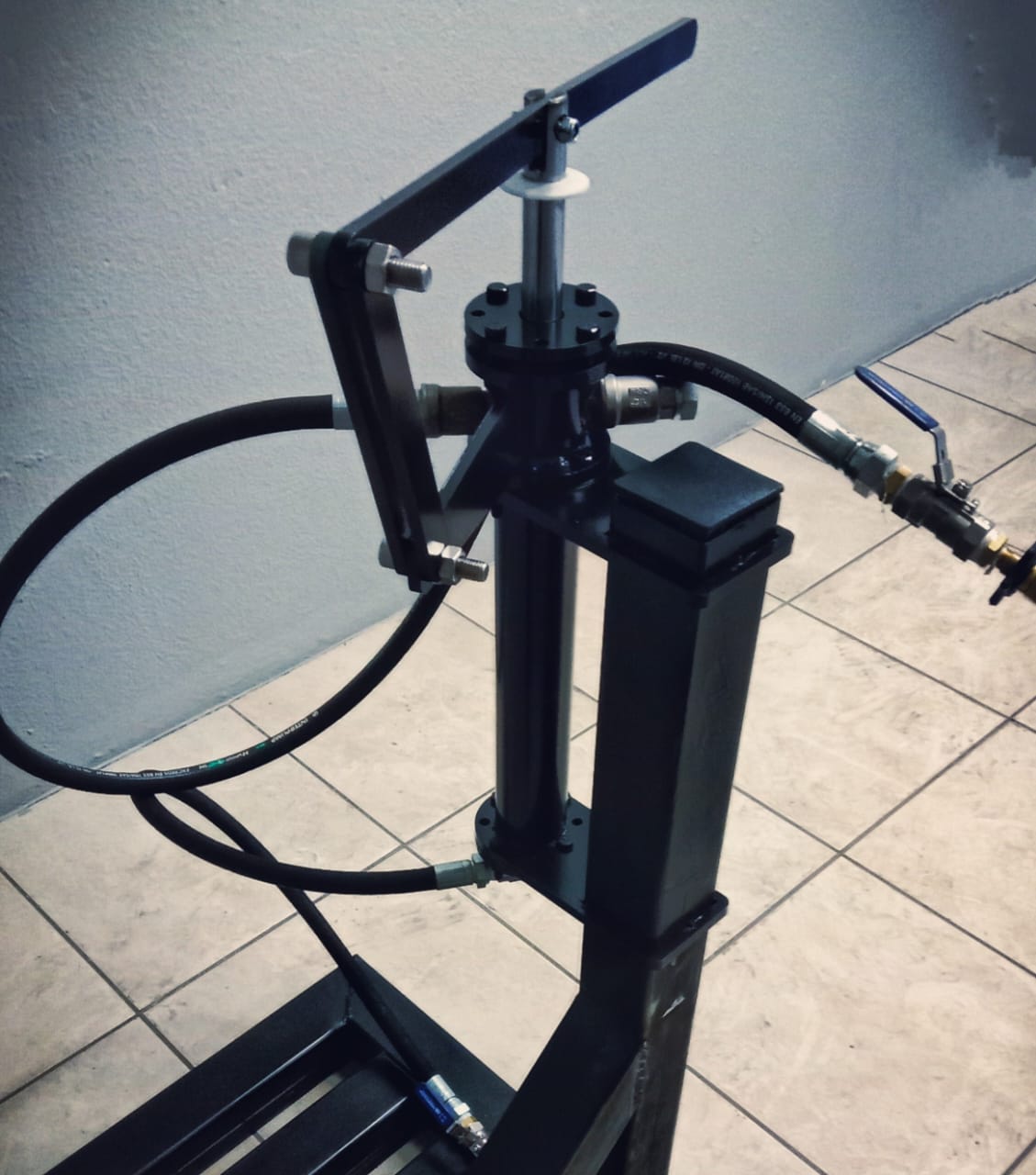

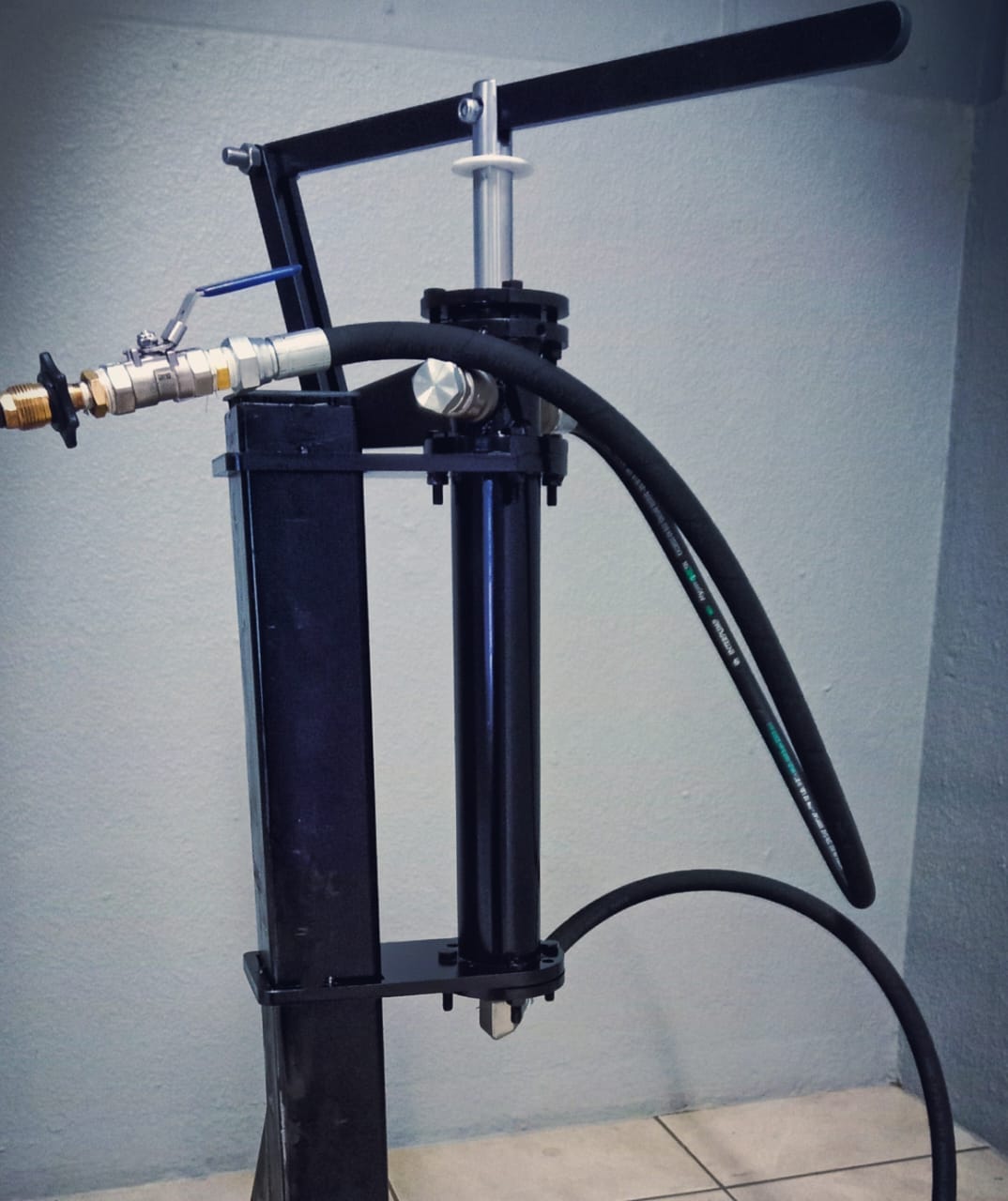

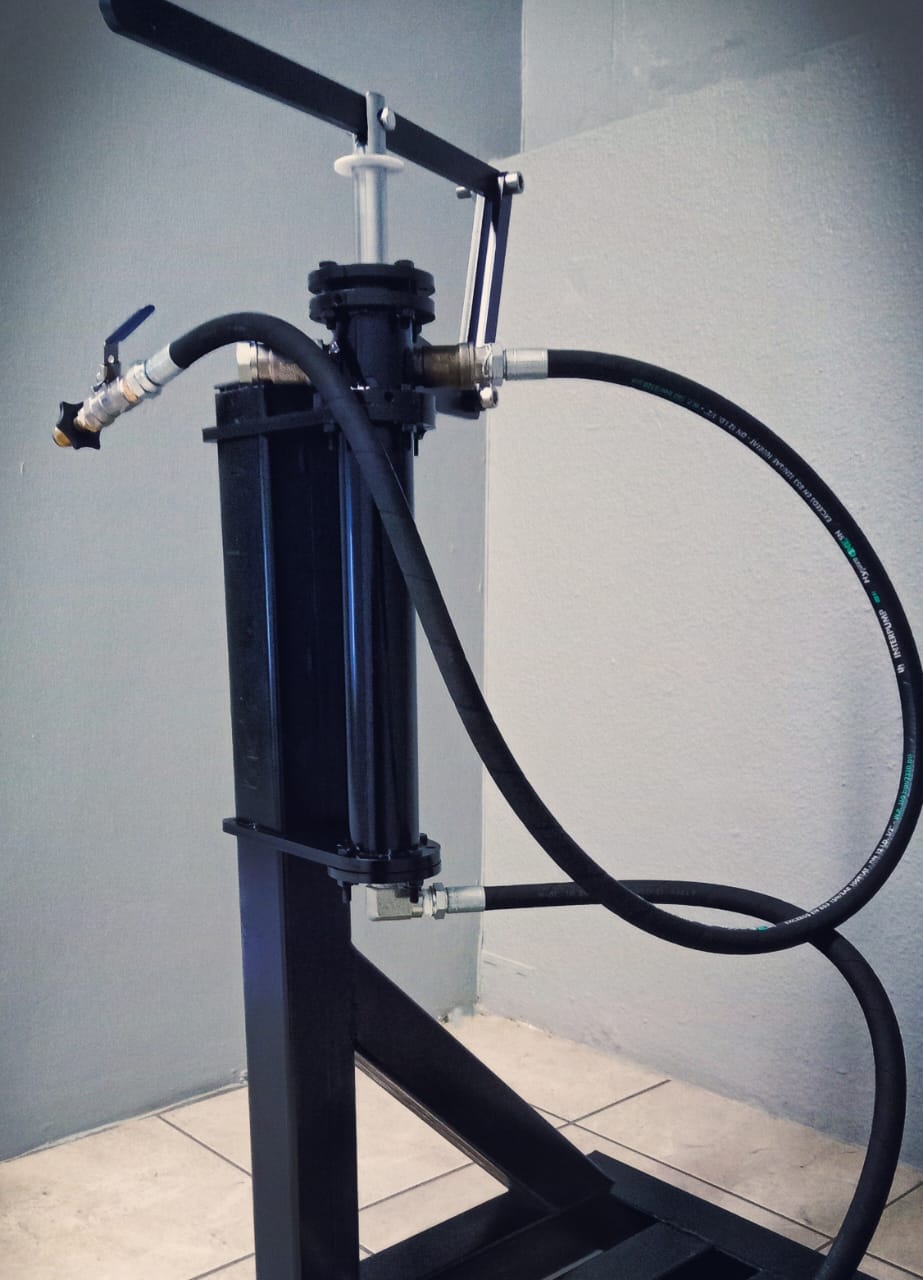

Manual Handpump
Rugged, portable handpump solution for small-scale distributors and remote operations. Ideal where power or air supply is limited.
Operational Benefits:
– Low maintenance and reliable
– Flexible deployment and portable
– Suited for challenging environments
Don’t settle for unsafe imitations. The Liquefied Gas Pump is certified, pressure-tested, and built for safety, with full bypass and sealing systems.
✅ Certified Performance
✅ Built for Harsh Environments
✅ Trusted by Professionals
Not all pumps are created equal.
Liquefied Gas Pumps are engineered, certified, and pressure-tested — delivering true reliability, safety, and performance. When safety matters, trust the real deal.
Cylinder
- Ø50 mm × 250 mm
Operating pressure
- 4–8 bar
Pump displacement
- 150g per downward stroke.
Typical throughput
- 2.0–2.4 kg/min (13–16 strokes/min)
3 kg fill time
- ~1.25–1.5 min
Construction
- Stainless steel wetted parts, robust frame
Accessories
- FRL, exhaust silencers, quick-connect fittings
Safety
- Pressure relief, controlled exhaust.

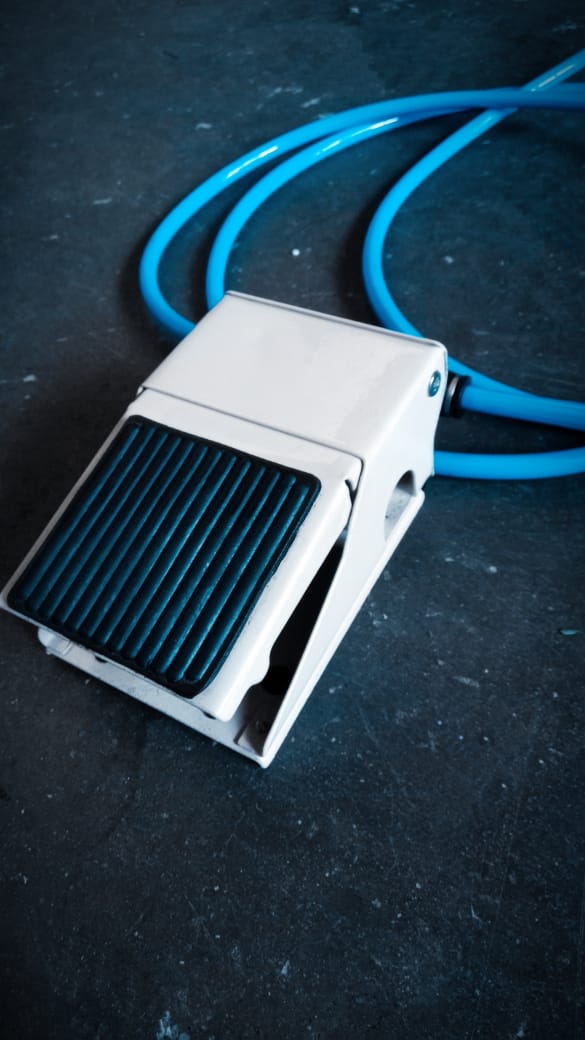

Pneumatic Foot-Switch Pump
Pneumatic assistance reduces operator effort while maintaining compatibility with the manual handpump base.
Operational Benefits:
– Reduces fatigue, adjustable stroke speed
– Easy retrofit to existing handpumps
Cylinder
- Ø50 mm × 250 mm
Scale Capacity
- 150–300 kg
Accuracy
- ±0.1% FS
Typical throughput
- 2.0–2.4 kg/min
3 kg fill time
- ~1.25–1.5 min
Accessories
- FRL, flow controllers, quick-connect fittings
Safety
- Auto shut-off relay, mechanical and pneumatic interlocks
Pneumatic + Scale Auto Shut-off
Semi-automatic system combining pneumatic actuation with electronic scale for precise weight-based fills.
Operational Benefits:
– Eliminates overfill/underfill
– Minimizes operator fatigue
– Adaptable to multiple cylinder sizes
Cylinder
- Ø50 mm × 250 mm
Scale
- Digital indicator with relay shut-off
Solenoid valve
- 24 VDC / 220 VAC single phase, 3/2 or 5/2
Typical throughput
- 2.0–2.4 kg/min
3 kg fill time
- ~1.25–1.5 min
Accessories
- FRL, exhaust silencers, flow controllers
Safety
- Emergency Stop, redundant valve options, pressure relief
Pneumatic + Solenoid + Scale
Push-button semi-automatic filling; solenoid valve actuates cylinder, and scale controls precise fill stop.
Operational Benefits:
– Push-button operation, reduces human error
– Ideal for medium-volume filling stations
Pump type
- 3-piston positive displacement
Motor
- Exd-rated flameproof motor
Electrical supply
- 380V 3-phase, configurable
Scale
- Digital indicator with programmable setpoint relay
Throughput
- 2.0–2.4 kg/min (standard), up to 3.0 kg/min (high-throughput)
3 kg fill time
- 1.25–1.5 min standard, ≈1 min high-throughput
Accessories
- FRL, flow controllers, exhaust silencers, quick-connect fittings
Safety
- Flameproof motor, auto shut-off relay, Emergency Stop, overload protection, pressure relief

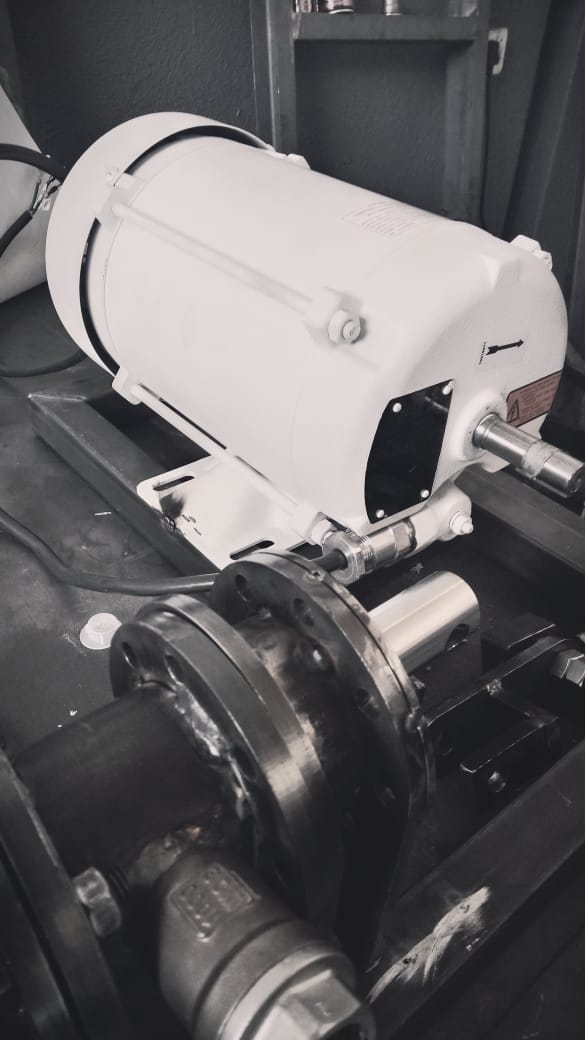

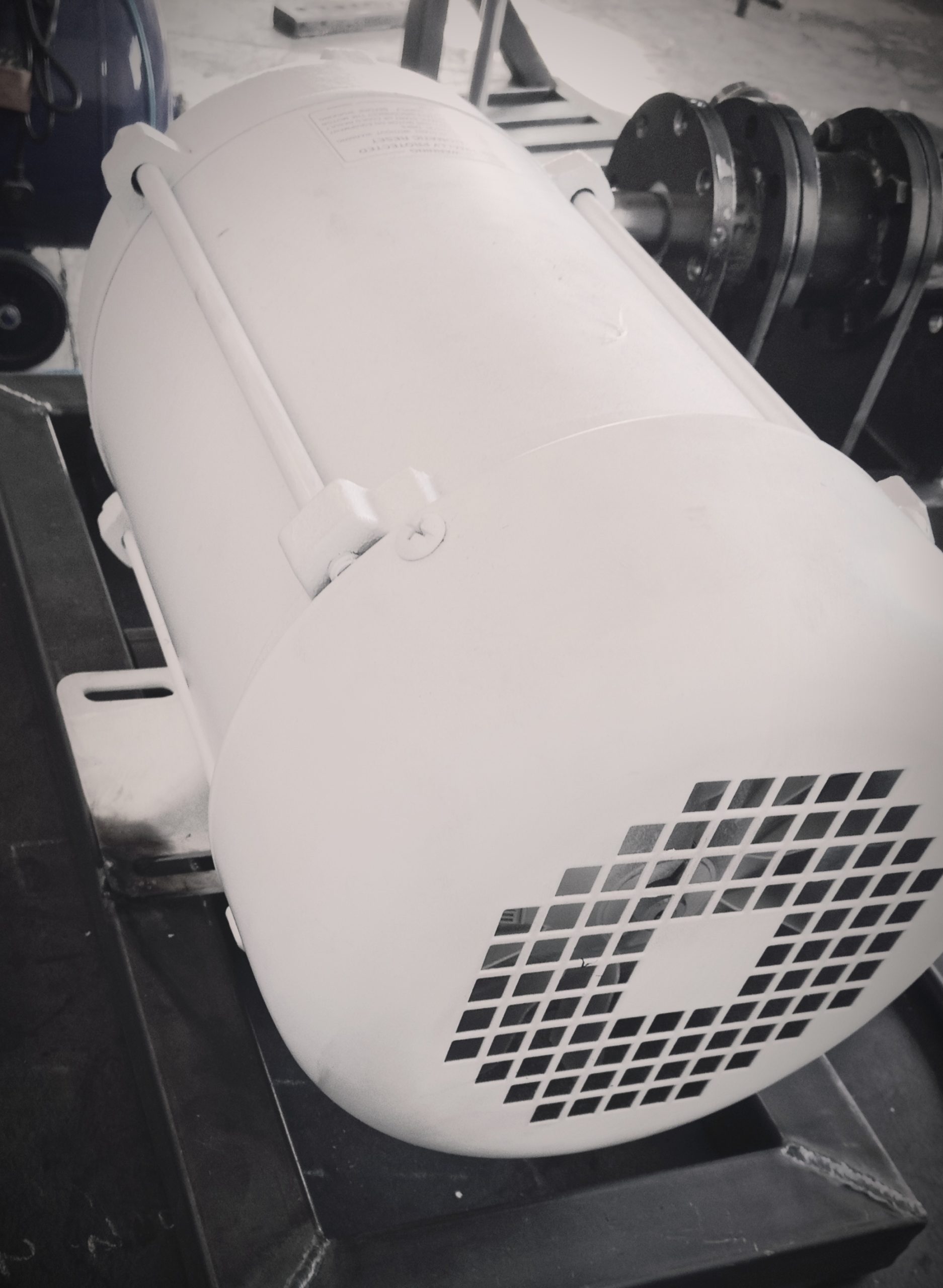

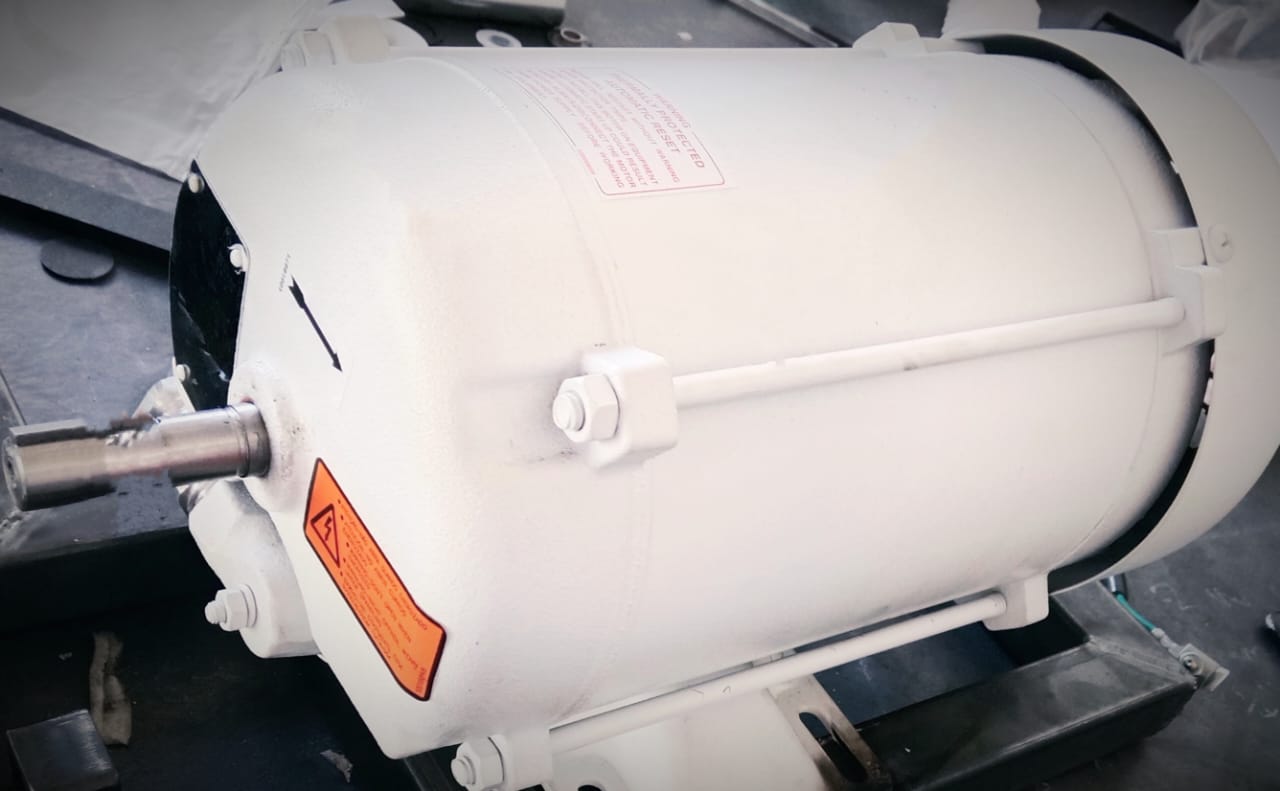

Tri-P Motorised Pump (Exd Rated)
Fully automatic, 3-piston pump with flameproof motor. Operator enters weight; system fills automatically and stops precisely at setpoint.
Operational Benefits:
– Fully automatic, minimal operator input
– High-volume depot applications
– Scalable for PLC/HMI integration
Our pumps are designed for efficiency, durability, and safety, giving you complete control over your gas transfers.
Save Time, Pump Smarter.
Capacities
- 300 / 600 / 1500 kg
Accuracy
- ±0.1% FS
Resolution
- 10–50 g depending on model
Auto shut-off
- Relay (NO/NC) configurable
Communications
- RS232/RS485/Ethernet, printer (optional)
Construction
- Stainless steel floor plate, IP66 indicator, robust load cells
Safety
- Overload protection, audible & visual alarms, E-stop input

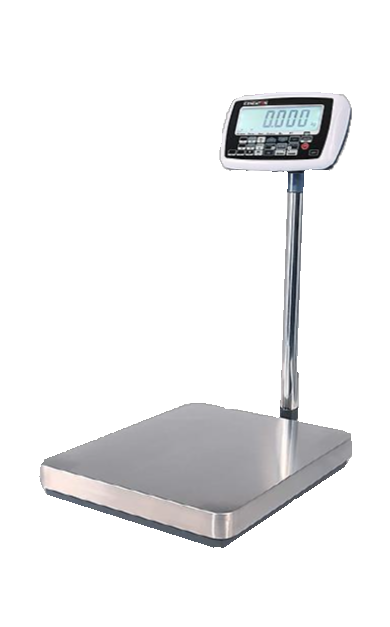

Depot Filling Scale
(Standalone Option)
For bulk filling depots; integrates with any pump. Pump not included.
Stop struggling with unsafe, messy, and expensive gas handling.
Our high-quality gas cylinder pumps make refilling simple, safe, and cost-effective — perfect for businesses and industry.
Suitable for commercial, and industrial use.
Built to last, backed by service you can count on.
